Automobile Armature Starter Round Coil Winding Hairpin Forming Machine

Model NO. : WIND-AWF-R

Specification : Middle Size

Trademark : Wind Automation

Origin : China

HS Code : 8479811000

Production Capacity : 50 Sets/Year

Contact Now

Automobile Armature Starter Round Coil Winding
Hairpin Forming Machine

This hairpin forming machine is for round wire to do coil winding and forming. It can do automatic straighten alignment, peel enamel,loading,cutting and forming, unloading.

(1) Application
Form wire starter motor, oil pump motor armature round copper wire production,

(2) Specification
Cycle time: Around 3s/pc
Voltage: 380V
Presure: Min 0.5Mpa
Wire diameter 1.8mm to 3.4mm
Wire feeding length: 0~250mm
Efficiency: 2.3s/pc
Power: 500W
Weight: Around 700KGS
Dimension: 1700mm*600mm*1650mm

(3) Configuration
Mitsubishi PLC
Weinview touch screen
Korea SPG enamel remover
Airtac penumatic unit
Schneider electronic unit

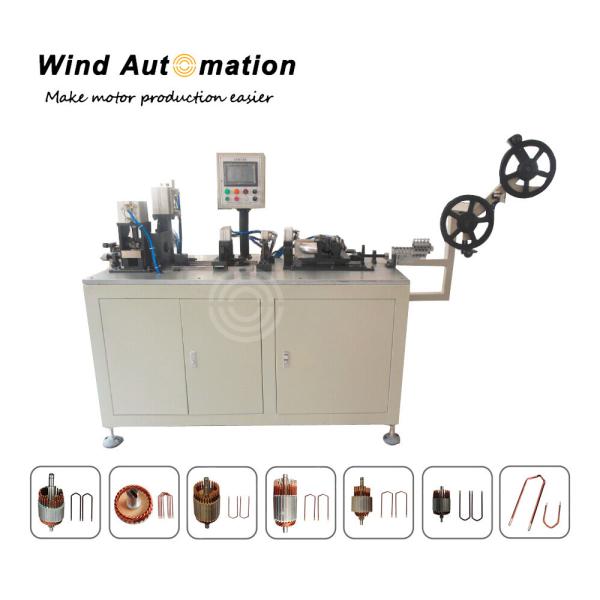

Automobile Armature Starter Round Coil Winding Hairpin Forming Machine

Automobile Armature Starter Round Coil Winding Hairpin Forming Machine

Automobile Armature Starter Round Coil Winding Hairpin Forming Machine Images
